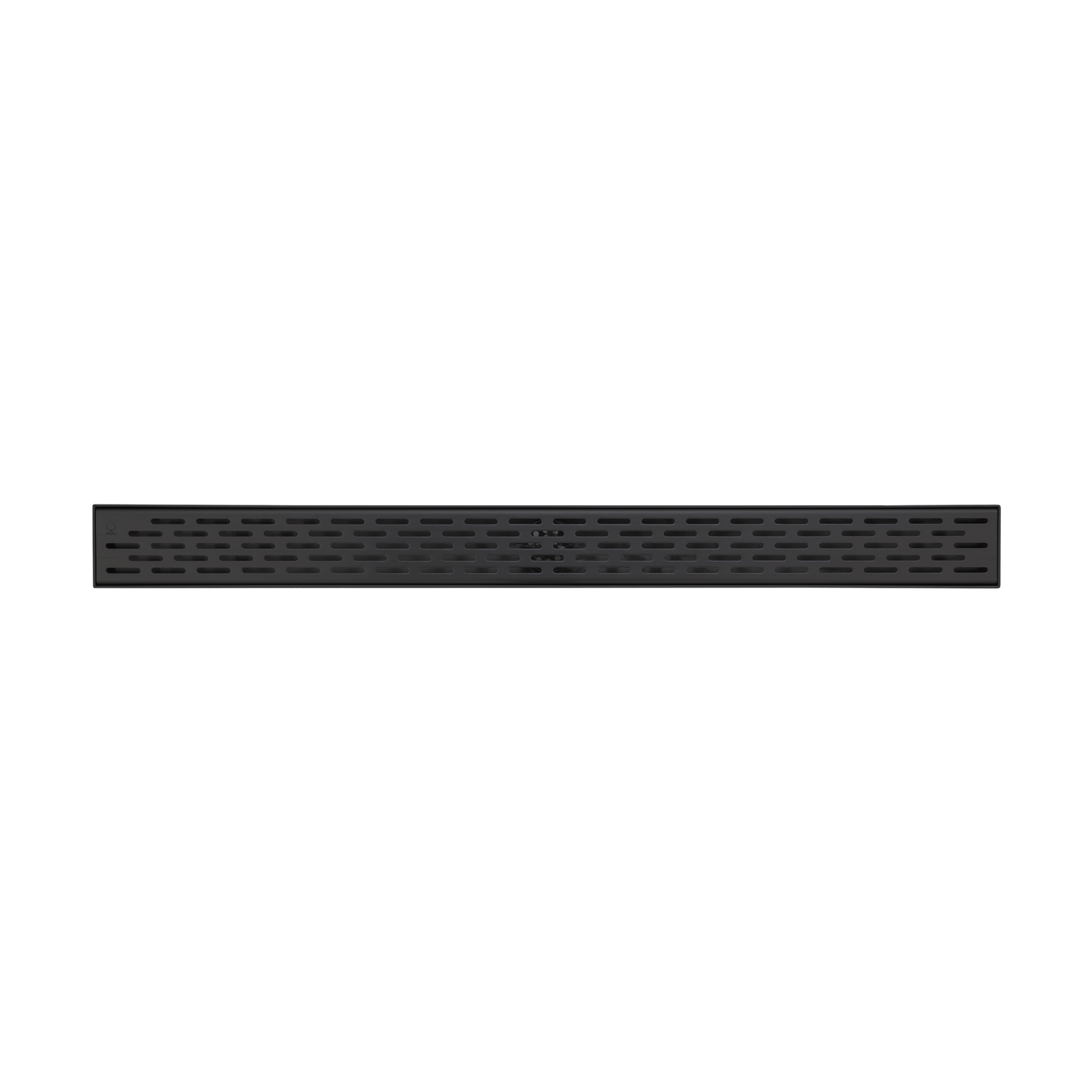

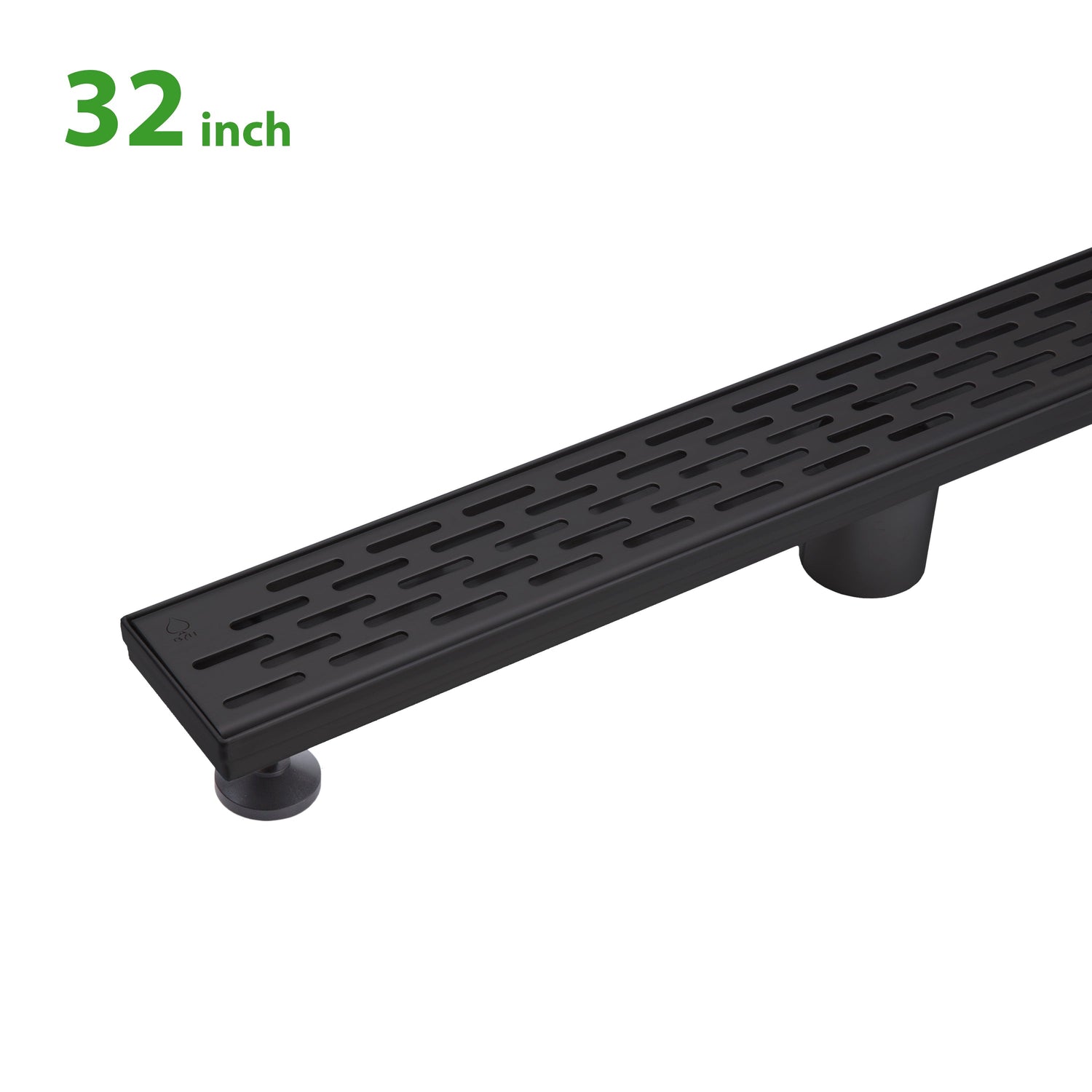

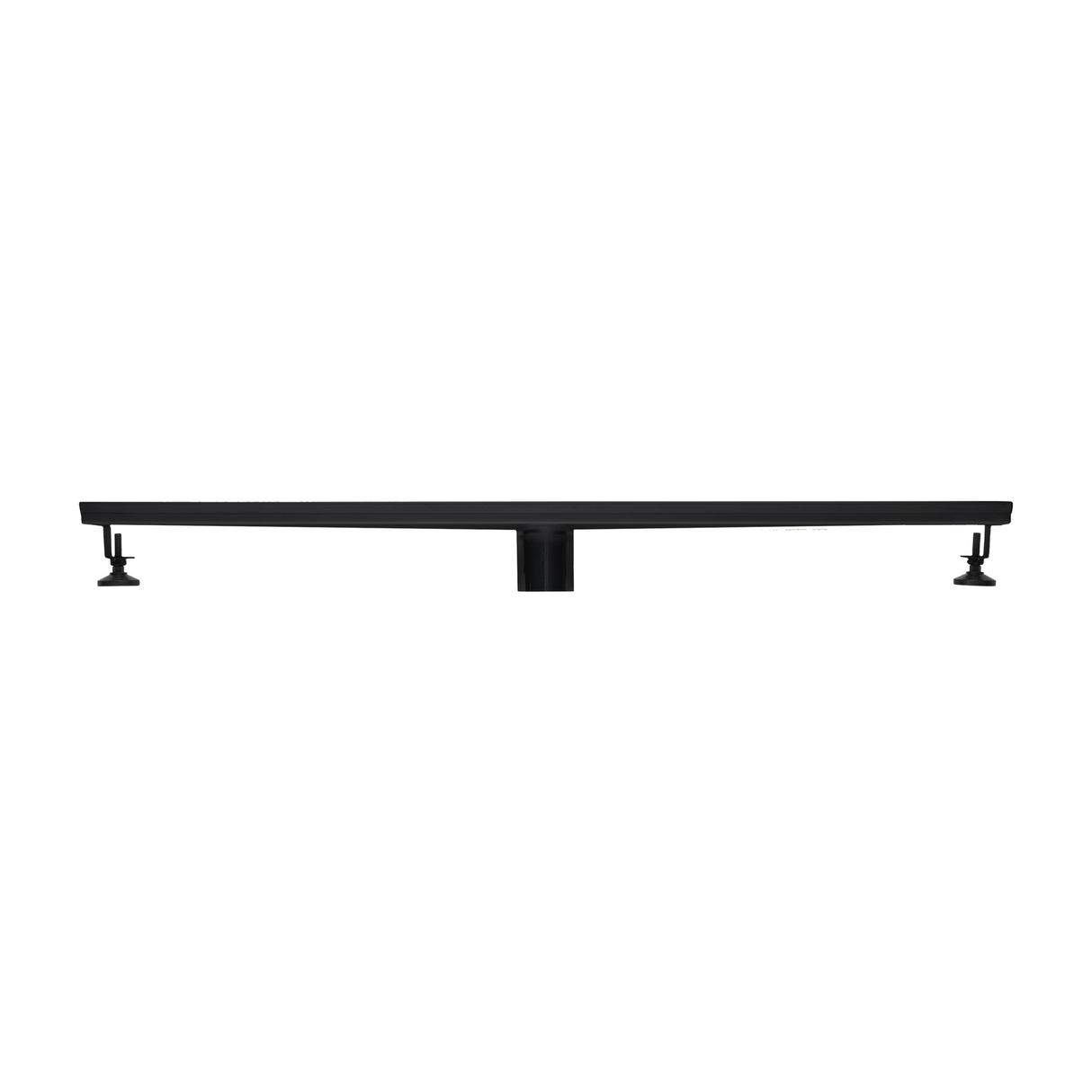

KOLO 0526 Stainless Steel 32-inch Linear Shower Drain in Matte Black

Stainless Steel Linear Shower Drain - 32"

Eliminate barriers in the shower layout for level threshold designs. Compatible with different floor structures, specifically designed for bonded waterproofing assemblies. The shower drains can be installed adjacent to walls or at intermediate locations in showers, steam rooms, wet rooms, and other applications that require waterproofing and drainage. The floor can be sloped on a single plane to the linear drain, which enables the use of large-format tiles eliminating complicated floor slopes and creating interesting design opportunities. Our shower drains consist of a formed stainless steel channel body and a grate assembly that can be seamlessly adjusted to the thickness of the ceramic tile or stone. The simple connection to standard 2" drain outlets makes it suitable for new construction and renovation. A removable grate makes it easy to clean. Certified by IAPMO as complying with both the product’s performance standard and the Uniform Plumbing Code (UPC). Legal to use in all type of projects in US and Canada. Membrane connector is required for proper installation!

Features:

• Matte black finish
• High quality 304 stainless steel
• Adjustable legs for precise installation
• Removable grate for easy cleaning
• Standard 2" drain hole
• One year manufacturer warranty

Specifications:

• Drain Cover Thickness: 14 Gauge
• Drain Stand Thickness: 18 Gauge
• Dimensions: 32.0" x 3.0" x 3.1"
• Net Weight: 6.0 lbs
• Box Size: 35.0" x 6.0" x 5.0"
• cUPC Certified
• UPC: 813509027344
• SKU# SD-BF0526-32

Downloads:

• Technical Drawings
• Installation Diagram

Required for Installation:

KOLO 0584 PVC Membrane Connector

KOLO 0549 Cast Iron Membrane Connector

Optional Accessories:

KOLO 0583 Rubber Gasket

• By own KOLO driver
• DYLT
• Fedex
• UPS
• USPS.

1-year warranty against defects in workmanship and materials

Returns: Customers must provide proof of purchase for all returned goods. No material will be accepted for return after 30 days.
